Description

      Call or Text or Email To Get A Quote

                       Please Note calls and texts to this number is via Whatsapp only +2348188752776

Application for Abdomen, Obstetrics, Cardiology, small parts, vascular, tendon, etc
15 inch high resolution, wide-angle color LCD with 45 degree tilt functionality
Three transducer port is designed to meet the different clinical applications
iBscanTM Quick Image Optimization; Annotation library for quick comment; iBstationTM Patient information management system
Image clipboard for thumbnail view; Special-designed probe holder, no need for extra assistance

Technical Specifications: 1. Platform: Based on linux, stable performance, security data; 2. Imaging modes: B, B/B, B/M, M, 4B; 3. Application scenarios: Veterinary clinic & research departments and livestock farm, Zoo, etc. ; 4. Application for equine, large animal, small animal, zoo mammal, and marine mammal medicine; 5. Touch Screen: Fully resistive touch screen; 6. Gray scale levels: 256; 7. Transducer type: Convex Array, Linear Array, Rectal Linear Array; 8. Battery Working time: Continuous scan greater than 5 hours with 2 batteries, replaceable battery design; 9. Technology Descriptions: Wide-angle imaging, Panoramic focusing technology, Rolling M technology, Cloud processing technology, Noise suppression, Image enhancement; 10. Ergonomics: 15” high resolution LCD Monitor; Adjustable LCD view angle; Convenient cable &probe hook; 11. Transducer frequency: 2-12Mhz; 12. Transducer element: 128; 13. Transducer connector: 3 active transducer connectors; 14. Scanning depth: Up to 300mm; 15. Monitor: 15 inch with 45 degrees adjustable; 16. Input and output: HDMI, USB 3.0, WIFI, MIC, DC in, S-Video, DICOM3.0:(optional);
Standard Package:

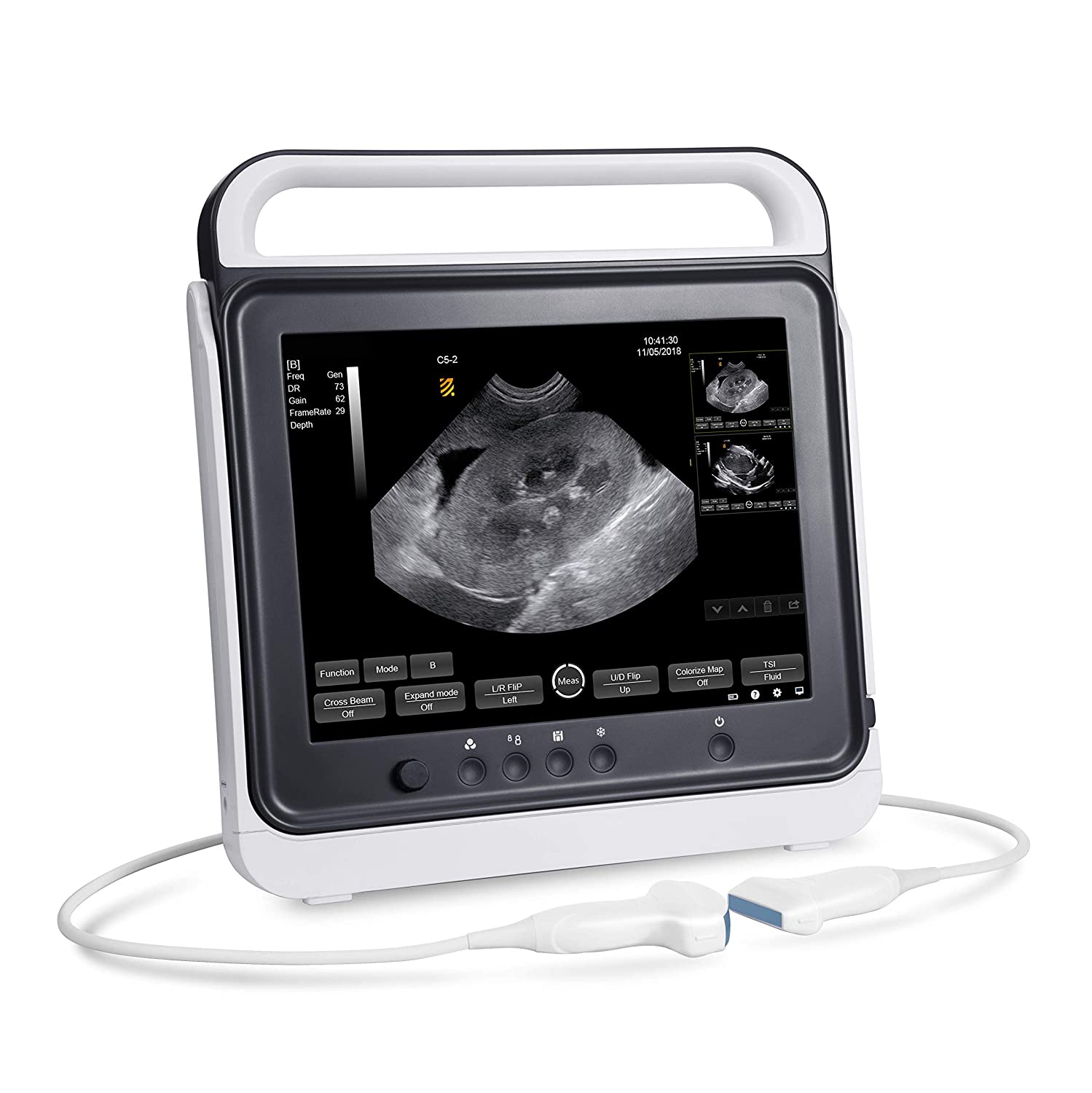

15″ Touchscreen Pad B/W Compact Portable Veterinary Ultrasound main unit;
15″ high definition LCD monitor
Resistive touch screen
LCD Monitor easily be adjusted to the user’s preferred height (up to 45°)
WIFI module
Three transducer connectors
Two special-designed probe holders
Two USB ports,one HDMI port, one s-video out port; SSD for patient data
User defined exam settings
Plenty of veterinary measurement & calculation software packages
L11-4Fc Rectal linear probe
LY606090
Rechargeable lithium-ion battery, 7000mAh
MANGO – AC Adapter
MANGO-BMV-15AD
Optional probe: 1. Convex array for Large animal scanning
2. Micro-convex array for small and big animal scanning
3. Rectal linear for Large animal scanning
4. Linear for small animal and equine scanning

Size 40.2×38.5×5.3cm

Weight 5kg
