Description

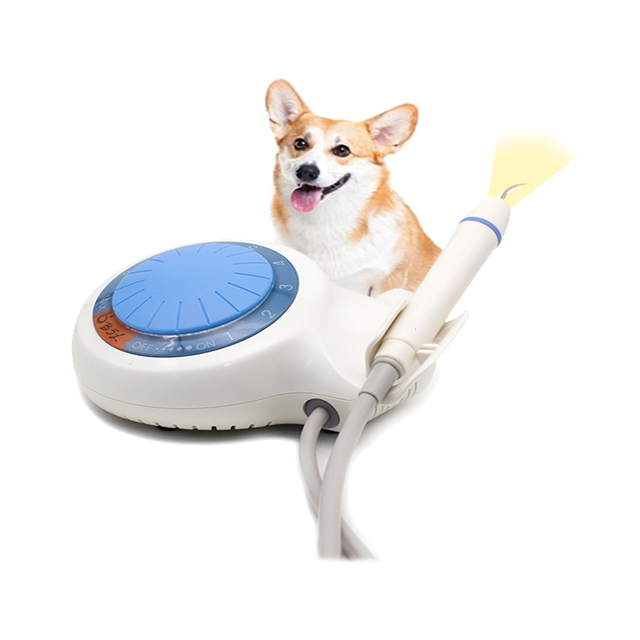

Details about B5L Veterinary Dental Ultrasonic Scaler

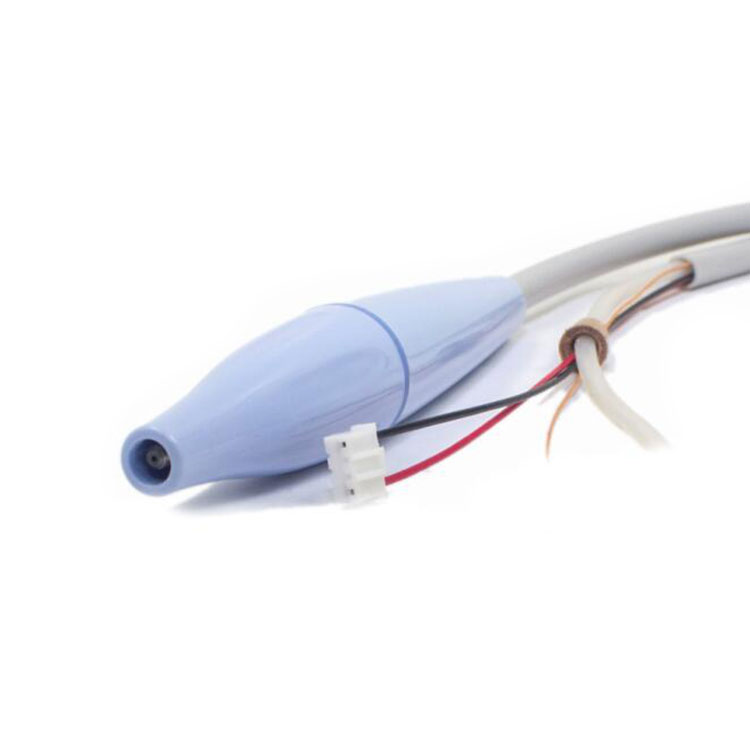

The B5L scaler comes with H1 Sealed Plastic Handpiece.
Compatible with EMS, Scaling, Perio and Function included.
CE & FDA Certified.

The advantages:
1. Good heat dispersion.
2. Very comfortable when handling.
3. Digitally controlled, automatic frequency tracking, works steadily.
4. Continuous 1500 hours strengthen the test without problem.
5. The atomised spraying design forms the cavitation to achieve the cleaning and sterilization purposes.
6. Ergonomic handpiece design adopts an innovative structural patent, easy for longtime use.
7. Unique automatic amplitude compensation function, maximally reduces patients discomfort.

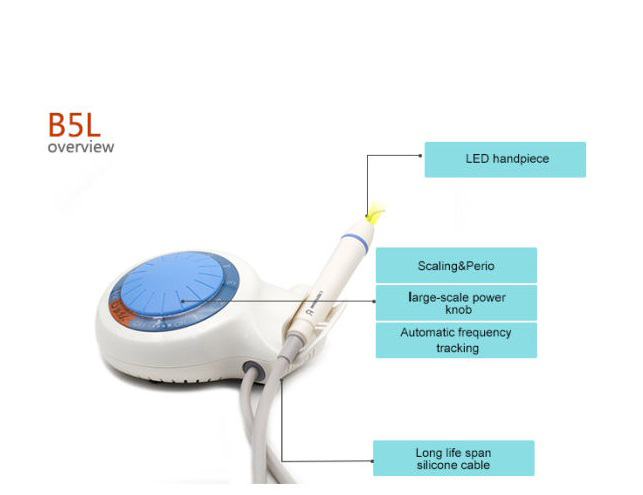

B5 Ultrasonic dental scaler looks very nice, with small size and CE approved.
It is the most cost-effective scaler for most dentists and Veterinarians.

Specification
Adapter Input- 100-240V, 50/60Hz, 0.7A-0.4A
Main unit input- 30V 1.2A
Main unit fuse- 250V/T 1.6AL
Output power- 3W-20W
Output primary tip vibration excursion- ≤200μm
Output tip vibration frequency- 28kHz±3kHz
Output half-excursion force- <2N
Water pressure- 0.1MPa~0.5MPa (1bar~5bar)
Weight of main unit- 0.55kg
Weight of adapter- 0.34kg
Certificate- CE, FDA, ISO13485, RoHs
Operating Mode – Continuous Operation
Electric Shock Protection Type – Class II
Classification 93/42EEC – Class IIa
Degree of protection against electric shock – B
Degree of protection against harmful ingress of water – Ordinary Equipment(IPX0), Foot Switch (IPX1)
Degree of safety of application in the presence of a
Flammable Anesthetic Mixture with air or with Oxygen
or Nitrous Oxide
-Equipment not suitable for being used in presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide.

Pack include
1 x Main Unit

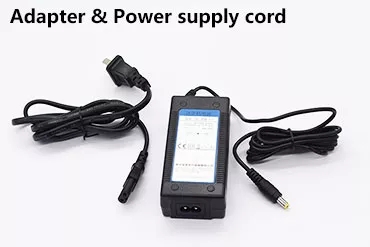

1 x Adapter

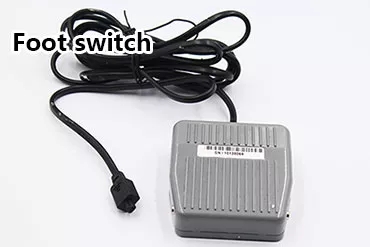

1 x Foot Switch

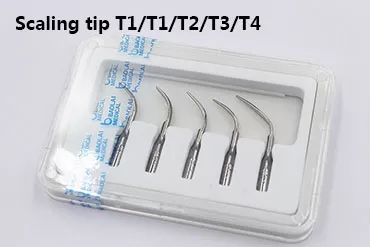

5 x Scaling Tip (T1X2, T2X1, T3X1, T4X1)

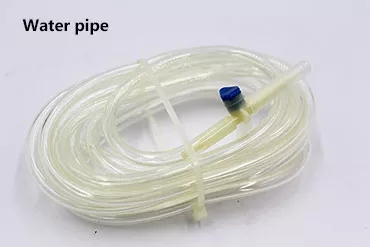

1 x Water Pipe

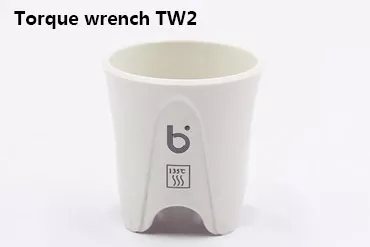

1 x Torque Wrench TW2
1 x instruction Manual
1 x Spare part LED

All goods are to be assembled or installed by customers. We do not accept return for equipment, cages, devices etc
